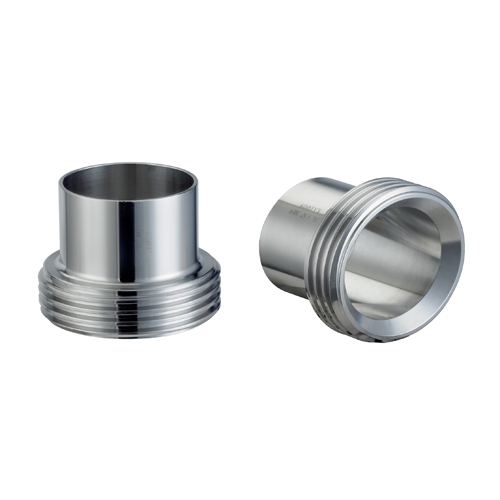

Long Male

Size

A

B

C

L1

L2

DN10

10

13

RD28X1/8

19

41

DN15

16

19

RD34X1/8

19

41

DN20

20

23

RD44X1/6

31

43

DN25

26

29

RD52X1/6

26

43

DN32

32

35

RD58X1/6

30

48

DN40

38

41

RD65X1/6

31

48

DN50

50

53

RD78X1/6

31

48

DN65

66

70

RD95X1/6

36

60

DN80

81

85

RD110X1/4

42

64

DN100

100

104

RD130X1/4

50

64
